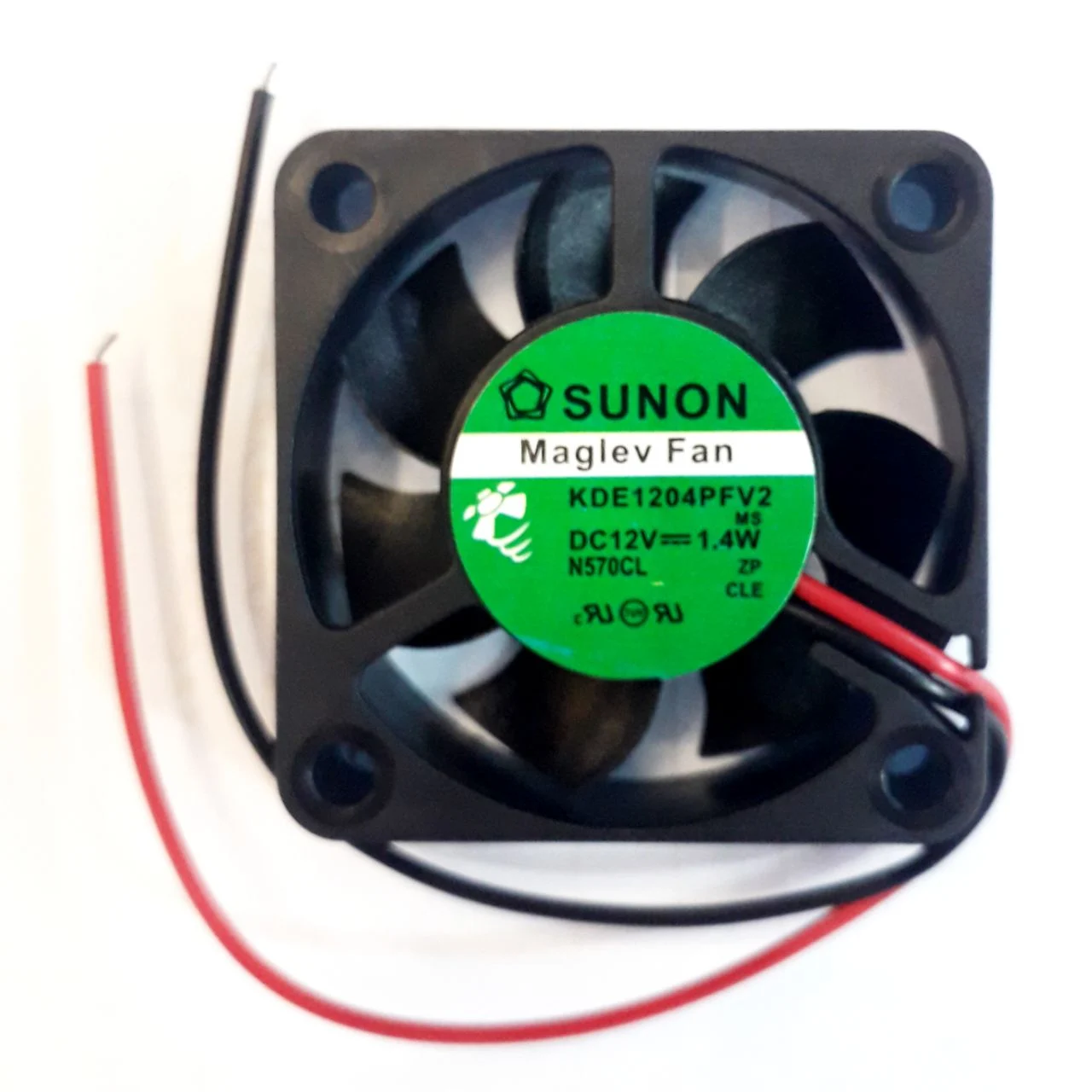

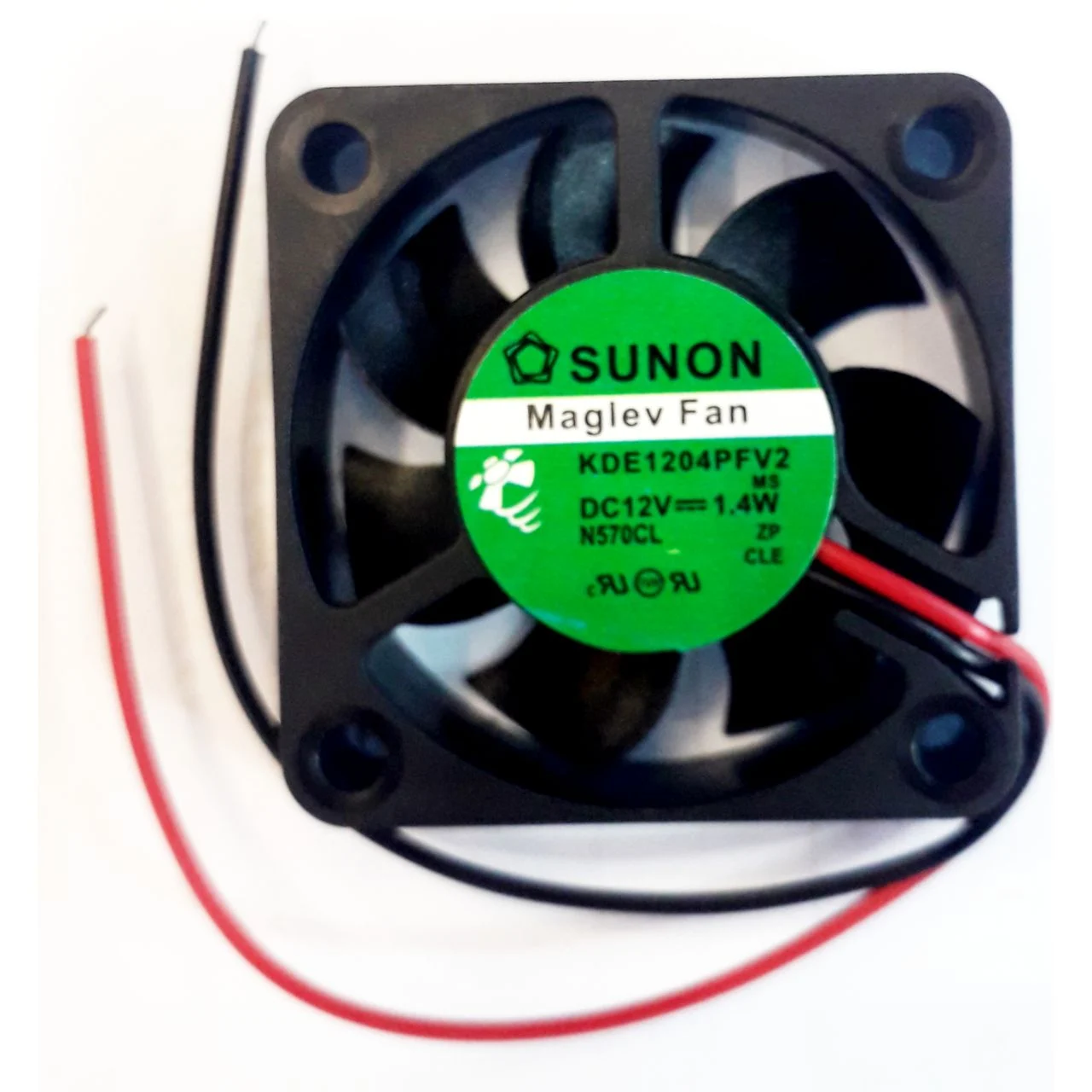

فن 12 ولت 1.4 وات 4 در 4 SUNON (DVR)
توضیحات
فن 12 ولت 1.4 وات 4 در 4 SUNON (DVR)
پارت نامبر : kde1204pfv2
ضخامت : 1سانتی متر
ولتاژ : 12DC
مناسب برای دستگاه دی وی آٖر (DVR)
بلبرینگی
Manufacturer
SUNON
Type of fan
DC
Operating voltage
6…13.8V DC
Fan dimensions
40x40x10mm
Power consumption
1W
Current rating
80mA
Fan efficiency
11.89m3/h
Noise level
27dBA
Kind of Bearing
Vapo
Rotational rate/speed
5800 (±20%)rpm
Current and power consumption tolerance
±15%
Min. insulation resistance
500MΩ
Impeller material
thermoplastic
Enclosure material
thermoplastic
Insulation class
E
Leads
lead x2
Operating temperature
-10…70°C
Cable length
0.3m
Flammability rating
ECE R-118:
This regulation applies to fire testing of materials used in the interiors
of motor vehicles, such as upholstery, floor coverings, etc.
UL94:
This standard is used to assess the flammability of plastic materials
used in various industries, including the electronics, automotive
and construction sectors.
UL94V-0
Additional functions
autorestart
Fan motor
brushless DC
Static pressure
3.3mm H2O
Wire size
28AWG
توضیحات تکمیلی
| وزن | 2 گرم |
|---|---|
| ابعاد | 40 × 40 × 10 میلیمتر |
| ولتاژ ورودی | 12DC |
| جریان | 1.4W |
